China Iking ST series stud welding machine are mainly applied to the installation of stud fusion welding in construction of steel structure, bridge and railway etc. ST stud welder with functions of weld time preset, weld parameter preset and digital display etc. The precision preset time can reach to 0.01 second, and welding preset current can reach to 1ampere, which improve welding reliability and stability and can be operated easily. Welding machine testing after production complete. 1. Outer packing: sea worthy plywood cases. 2. Inner package: welding machines covered by bubble covers and inside fixed by battens with nails; matched welding guns and other accessories packed on pallet. 3. Packing size: please refer to specific welder model packing size. 4. Container load: please refer to specific welder model packing size. After 30 years development,IKING have had got the CE, ISO, SGS certificates and have become reliable supplier and good partners for our customers. China Iking ST series stud welding machine are mainly applied to the installation of stud fusion welding in construction of steel structure, bridge and railway etc. ST stud welder with functions of weld time preset, weld parameter preset and digital display etc. The precision preset time can reach to 0.01 second, and welding preset current can reach to 1ampere, which improve welding reliability and stability and can be operated easily. Welding machine testing after production complete. 1. Outer packing: sea worthy plywood cases. 2. Inner package: welding machines covered by bubble covers and inside fixed by battens with nails; matched welding guns and other accessories packed on pallet. 3. Packing size: please refer to specific welder model packing size. 4. Container load: please refer to specific welder model packing size. After 30 years development,IKING have had got the CE, ISO, SGS certificates and have become reliable supplier and good partners for our customers.

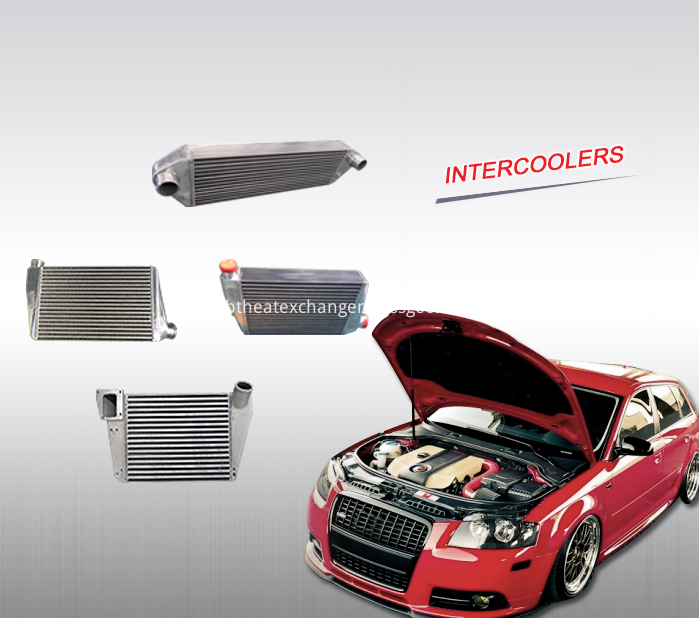

Aluminum plate-bar intercooler, as the important part of engine's supercharging system, it can effectively cool down the compressed air ,
improve the fuel usage rate and prolong engineer life.
Stacked layer oil cooler, high performance better cooling for Motor Cycle,Cars, Refitted Vehicles, etc.
Auto Motor Tube-Fin Radiator for HODA, YAMAHA, VW etc
Advantage:
Light weight, compact construction and high performance.
Fins: offset fin, straight fin, perforated fin, louvered fin, corrugated fin
FAQ
Q1:Could you customize oil cooler/Heat Exchanger?
We can cutomize heat exchanger/oil cooler /intercooler according to your drawings or samples or parameter requirement.
Q2: I want to buy your products, how can I pay?
A :You can pay via T/T
Q3: How can you guarantee the quality?
A: One year's warranty against B/L date.
Q4: If we don`t find what we want on your website, what should we do?
A: You can email us the descriptions and pictures of the products you need, We will check whether we can make it.
Q5: Can we buy samples of each item for quality testing?
A: Yes, we understand quality test is important and we are glad to send the sample for quality testing.
Q6: What is the lead time?
A: Normal : Plate-fin heat exchanger for 2~3 weeks; Tube&fin or stacked layer coolers for 5 weeks. Exact time upon negotiation .
Best Transmission Cooler,Auto Transmission Coolers,Auto Engine Oil Cooler Wuxi Better Technology Co., Ltd , https://www.btheatexchanger.comST series stud welding machine
The main power of welding machine is designed in compact size and lightweight, can work 24 hours continuously. With design of anti-misoperation, it can prevent repeat welding onto the same point. The welder also have functions of short-circuit pretection and circuit-breaker protections,  which can protects circuit control board well, and the welder can be started smoothly after trouble-shooting. With all pretections above, the failure rate of the welder is low, and it can prolong the life-span of welding machine.
Â

Â
ST series stud welding machine
The main power of welding machine is designed in compact size and lightweight, can work 24 hours continuously. With design of anti-misoperation, it can prevent repeat welding onto the same point. The welder also have functions of short-circuit pretection and circuit-breaker protections,  which can protects circuit control board well, and the welder can be started smoothly after trouble-shooting. With all pretections above, the failure rate of the welder is low, and it can prolong the life-span of welding machine.
Â
Â
Â
Inverter Drawn Arc Stud Welding Machine
Model NO.: SN-2500
Model Type: Drawn Arc Stud Welder
Applied Patent: Invention Patent Gun Cooling Device
Delivery Time: About 5 Days
Welding Time(S): 0.1~5.0
Usage: Arc Stud Weld
Applied Field: Industrial Construction Field
Work Environment: Dry Environment
Rated Duty Cycle: 32%
Certification: Ce
Protection: IP23
Trademark: IKING
Transport Package: Plywood Cases
Specification: 920mmX470mmX650mm
Origin: Tianjin
HS Code: 8515319900
Model NO.: SN-2500
Model Type: Drawn Arc Stud Welder
Applied Patent: Invention Patent Gun Cooling Device
Delivery Time: About 5 Days
Welding Time(S): 0.1~5.0
Usage: Arc Stud Weld
Applied Field: Industrial Construction Field
Work Environment: Dry Environment
Rated Duty Cycle: 32%
Certification: Ce
Protection: IP23
Trademark: IKING
Transport Package: Plywood Cases
Specification: 920mmX470mmX650mm
Origin: Tianjin
HS Code: 8515319900
Product Description
Technical Data
Parameter
Iking ST Series Drawn Aru Stud Welding Machine
Model
ST-1600
ST-2500
ST-3150
Stud Range
Φ10-18mm
Φ10-22mm
Φ10-28mm
Max. Output Current
1600A
2500A
3150A
Regulated Output (Stud)
200-1600A
400-2500A
600-3150A
Regulated Output (MMA)
80-630A
100-800A
150-1000A
Timing Control
100-2800ms
Duty Cycle (Stud Qty./Stud Dia./Per Minute)
18pcs/16mm/min
18pcs/19mm/min
18pcs/22mm/min
24pcs/8mm/min
24pcs/10mm/min
24pcs/13mm/min
Applied Patent
Invention patent GUN COOLING DEVICE
Main Circuit
Full bridge controlled rectifier
Control Circuit
Micro-processor Controlled
Repeat Cycle Lock
Automatic
Input Voltage
3 phase 380V/50Hz (other voltage and frequency are available)
Allowable Input Voltage Fluctuation
±10%
Standard Supply Scope
1. Machine (1pc) 2. Stud gun with cable (1pc) 3. Extended gun cable (1pc) 4. Earth clamp with earth lead (1pc) 5. Chuck and ceramic ring claw (4sets) 6. Crescent spanner (1pc)
Specification of 3-phase Power Cable (4 wires )
1 wire (10mm2)+3 wires (16mm2/pc)
1 wire (10mm2)+3 wires (25mm2/pc)
1 wire (10mm2)+3 wires (35mm2/pc)
Specification of Control Cable (4 wires)
4 wires (1mm2/pc)
Max. Length of Extended Welding Cable
50m
Max. Length of Extended Earth Lead
10m
Protection Class
IP23
Machine Weight
245kg
340kg
370kg
Gun Weight
2.5kg
Standard Gun (Heavy Duty)
SNQ9 with cooling device, damping system, automatic length compensation
Â
Quality Control
Packing & Delivery
Certifications
Accessories
Accessories Item
SpecificationÂ
Total QuantityÂ
Anti-spatter Stud gun with cable
SNQ9
1 Set
Extended gun cable
8M
1 Pcs
Earth clamp with earth lead
N/A
1 Pcs
Stud Chuck
Ф10,Ф13,Ф16,Ф19,Ф22,Ф25
4 Sets
Ceramic Ferrule Holder
Ф10,Ф13,Ф16,Ф19,Ф22,Ф25
4 Sets
Crescent Spanner
N/A
1 Pcs
Enclosed Documents
N/A
1 Set
Application
Product Description
Technical Data
Parameter
Iking ST Series Drawn Aru Stud Welding Machine
Model
ST-1600
ST-2500
ST-3150
Stud Range
Φ10-18mm
Φ10-22mm
Φ10-28mm
Max. Output Current
1600A
2500A
3150A
Regulated Output (Stud)
200-1600A
400-2500A
600-3150A
Regulated Output (MMA)
80-630A
100-800A
150-1000A
Timing Control
100-2800ms
Duty Cycle (Stud Qty./Stud Dia./Per Minute)
18pcs/16mm/min
18pcs/19mm/min
18pcs/22mm/min
24pcs/8mm/min
24pcs/10mm/min
24pcs/13mm/min
Applied Patent
Invention patent GUN COOLING DEVICE
Main Circuit
Full bridge controlled rectifier
Control Circuit
Micro-processor Controlled
Repeat Cycle Lock
Automatic
Input Voltage
3 phase 380V/50Hz (other voltage and frequency are available)
Allowable Input Voltage Fluctuation
±10%
Standard Supply Scope
1. Machine (1pc) 2. Stud gun with cable (1pc) 3. Extended gun cable (1pc) 4. Earth clamp with earth lead (1pc) 5. Chuck and ceramic ring claw (4sets) 6. Crescent spanner (1pc)
Specification of 3-phase Power Cable (4 wires )
1 wire (10mm2)+3 wires (16mm2/pc)
1 wire (10mm2)+3 wires (25mm2/pc)
1 wire (10mm2)+3 wires (35mm2/pc)
Specification of Control Cable (4 wires)
4 wires (1mm2/pc)
Max. Length of Extended Welding Cable
50m
Max. Length of Extended Earth Lead
10m
Protection Class
IP23
Machine Weight
245kg
340kg
370kg
Gun Weight
2.5kg
Standard Gun (Heavy Duty)
SNQ9 with cooling device, damping system, automatic length compensation
Â
Quality Control
Packing & Delivery
Certifications
Accessories
Accessories Item
SpecificationÂ
Total QuantityÂ
Anti-spatter Stud gun with cable
SNQ9
1 Set
Extended gun cable
8M
1 Pcs
Earth clamp with earth lead
N/A
1 Pcs
Stud Chuck
Ф10,Ф13,Ф16,Ф19,Ф22,Ф25
4 Sets
Ceramic Ferrule Holder
Ф10,Ф13,Ф16,Ф19,Ф22,Ф25
4 Sets
Crescent Spanner
N/A
1 Pcs
Enclosed Documents
N/A
1 Set
Application
