Oil well production tubing

<

Oil Well Production Tubing

After the casing has been installed and cemented in place, the production tubing is then introduced into the well. This tubing is essential for transporting oil and gas from the reservoir to the surface.

Production tubing consists of individual pipe joints that are connected together to form a continuous string. The process of running tubing into an oil well is similar to running casing, but the tubing is smaller in diameter and can be removed and reinstalled as needed.

The production string serves as a direct conduit from the reservoir to the wellhead. Along with other components like valves and flow lines, it plays a crucial role in bringing oil and natural gas to the surface efficiently.

Unlike casing, which is typically left in place permanently, production tubing is designed for quick and safe installation, removal, and reinstallation. This flexibility makes it ideal for wells that may require maintenance or adjustments over time.

Producing oil and gas through tubing is generally more efficient than using large-diameter casing, as it reduces friction losses and allows for better control over the flow rate.

Our company offers a wide range of API 5CT tubing specifications, including both standard and non-API options. We also provide semi-premium and premium connections to meet specific project requirements.

We maintain a large inventory of commonly used pipe gauges, ensuring fast delivery when you need it most. Whether you're working on a new well or retrofitting an existing one, we're here to support your operations.

Please contact us today to discuss your needs and find the best solution for your project.

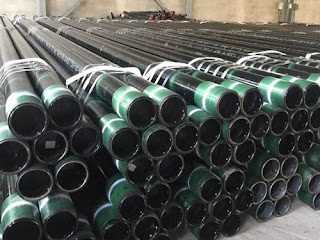

API 5CT Tubing Specifications:
Specification
Sizes Outside Diameter (Inches) Corresponding Poundage (Pounds Per Foot)
  1.050 1.14 PPF to 1.54 PPF
  1.315 1.70 PPF to 2.24 PPF
  1.660 2.09 PPF to 3.07 PPF
  1.900 2.40 PPF to 5.15 PPF
  2.063 3.24 PPF to 4.50 PPF
  2-3/8 4.00 PPF to 7.45 PPF
  2-7/8 6.40 PPF to 11.50 PPF
  3-1/2 7.70 PPF to 17.00 PPF
  4 9.50 PPF to 22.20 PPF
  4-1/2 12.60 PPF to 26.10 PPF
Grades H40, J55, N80, N80Q, L80, C90, C95, T95, P110, 13CR
Connections

NUE (non-upset tubing),

EUE (external upset tubing),

IJ (integral joint tubing),

Lengths Range 1, Range 2 & Range 3
Protection

External Bare and Uncoated OR Externally Coated with Anti-Rust Mill Varnish

Plastic OR Metal Pin and Box Protectors.

Internal Plastic Coating OR Sleeves.

Mill Test Certificates

Issued in accordance with API Specification 5CT Eighth Edition.


Third Party Inspection can be performed on request at buyer’s care and expense.
